Shuttle wlan kit for slim series pc s

Descriere produs

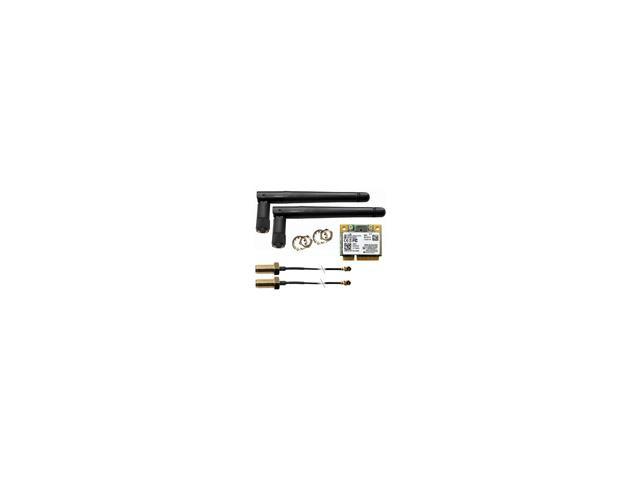

WLN-C / WLN-S WLAN kit for Shuttle PCs: WLN-C and WLN-S The Shuttle Accessory WLN-C / WLN-S is a wireless LAN kit consisting of a Mini-PCIe card, two antennas and appropriate cables. This accessory is intended for compatible Shuttle PCs to equip them with the wireless LAN standard according to IEEE 802.11b/g/n. Data transfer speeds of up to 300 MBit/s can be reached and WPA2 with AES encryption is supported, too. What are the advantages over a conventional WLAN USB stick? The Mini-PCIe card sits in the case and is better protected from tampering and theft The integrated solution is more appealing For the best possible efficiency the antenna should be at least 6cm long (half a wavelength at 2.4 GHz) which is a big advantage over the USB stick The use of two antennas makes the communication between devices more reliable and can also transmit two signals at the same time resulting in significantly faster speeds as with single antenna WLAN devices The transmission protocol of Mini-PCIe cards is less complex compared to USB which helps keep processor load lower Model WLAN cable compatible with these Shuttle PCs: WLN-S 21 + 29 cm Shuttle Slim-PCs: XG41, DS61, DS81(L), DS87, XH61V, XH81, XH81V, XH97V (XS35 / XS36 / DS47 / DS57U series already include WLAN) WLN-C 53 + 53 cm Shuttle XPCs: SX79R5, SZ77R5, SZ68R5, SH67H3, SH67H7, SH61R4, SH87R6, SZ87R6, SH81R4, SH97R6 Specifications: Contents 1. Mini PCIe Card (x1) 2. Antenna cable (x2) 3. Antenna (x2) 4. Quick Guide (x1) 5. Driver DVD (x1) Standard: WiFi IEEE 802.11b/g/n, 2T2R (2 transmitter, 2 receiver) Maximum PHY data rate: 144.4 / 300Mbps using 20 / 40MHz bandwidth Adapter card: model Chicony XW724E-K Half-size Mini-PCI-Express extension card Dimensions: 26.65 x 29.85 x 3.25 mm (LWH) Chipset: Realtek RTL8192CE Supported operating systems: Windows XP, Windows 7 32/64 Bit, Windows 8 32/64 Bit Frequency Band: 2400 ~ 2483.5 MHz Output power (typ.): 16 / 14 / 13 dBm in 802.11b/g/n mode Receiver Sensity (max.): -83 / -70 / -67 / -64 dBm in 802.11 b / g / n(HT20-MCS7) / n(HT40-MCS7) mode Power consumption under Windows 7: TX mode: max. 1201 mW RX mode: max. 726 mW Idle mode: max. 320 mW Driver disable / Radio off: max. 23.1 mW Security: WEP / WPA / WPA2 Hardware encryption: WEP, TKIP, AES Temperature Range: 0~70°C (Operating), 0~70°C (Storage) Humidity: 5~80 Non-Condensing EMC certification: CE Antenna cable: two WLAN cables (length: see table) U.FL, Hirose (for the internal WLAN adapter) to RP SMA Pigtail male (connector for the external antenna) Antennas: two external WLAN antennas (RP-SMA) Frequency range: 2.4 GHz, omnidirectional Total length: 108 mm, diameter: 7.8~10.0 mm
